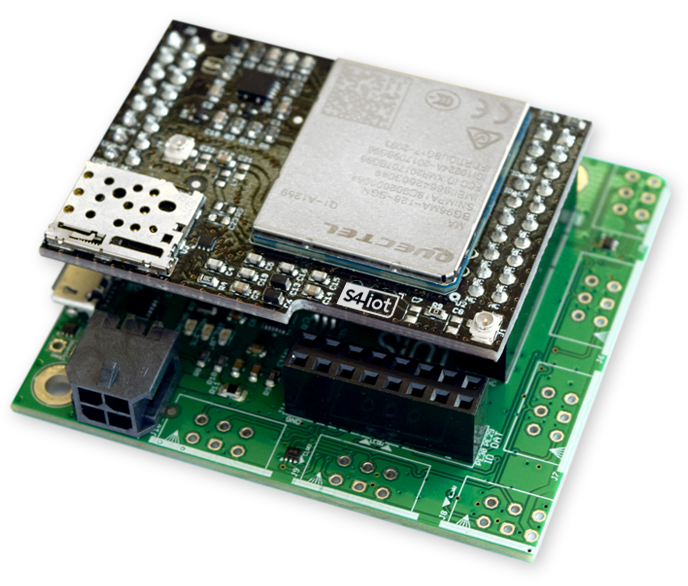

CatM1/NB-IOT Developpment kit 6 sensors Athen System

Product Summary

Athen Sense System is a fully IoT board for industrial applications, set to be a platform for commercial deployments. It has 6 operational slots that allow adapting different sensors of the most common protocols. Athen Sense System supports multiple shields that enable the communication to any cloud system or server with different Low Power Wide Area (LPWA) technologies, such as LTE-M, NB-IoT, and Sigfox. A network with extended coverage that allows deploying complex solutions with long battery life and connectivity in real time. General Dimensions (5.8cm x 5.3cm x 1.9cm) Operating temperature range (-40°C ~ 85°C) with USB wall adapter supply Hardware Operating voltage 3.3v Microcontroller ARM Cortex-M0+ Max clock speed 48 MHz Typical current ≤ 300mA in transmission 16 ports for user interfaces divided in 6 operational connections/slots Power supply and I2C are available for every operational slot Digital/analog communication interfaces: UART, LPUART, I2C, ADC, GPIO’s Low-Leakage Wakeu
